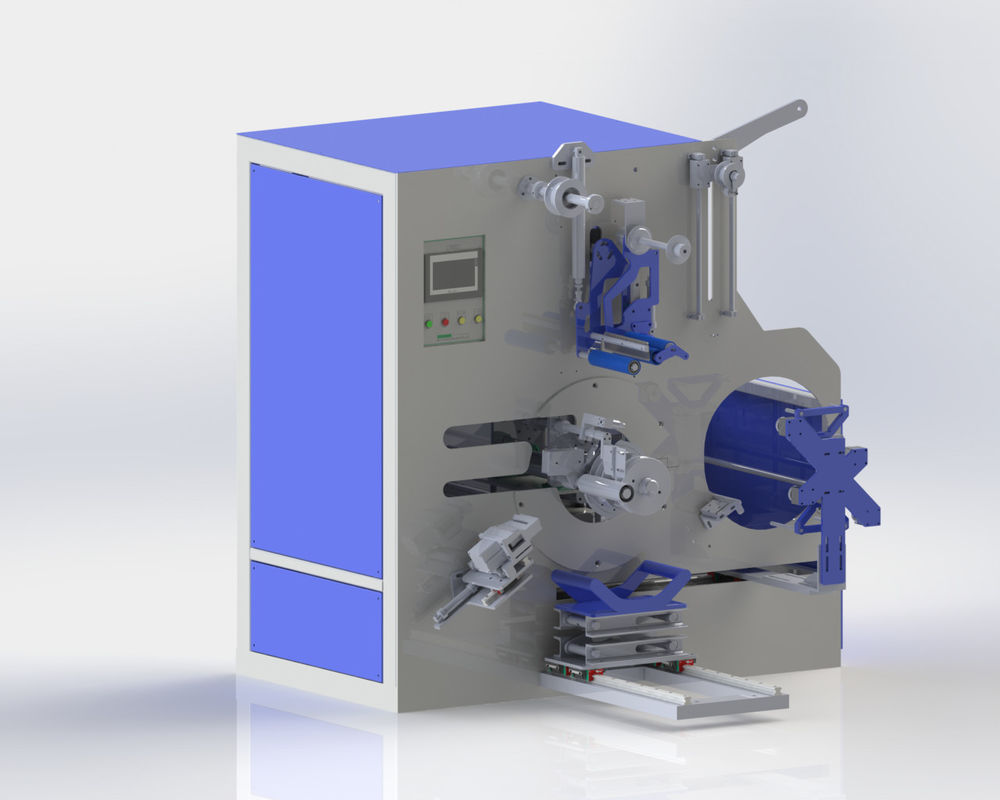

Automated PP strap winder CQA519PF

Automated PP strap winder CQA519PF

Facts and advantages

fully automatic pp strap winder for straps from 5 to 19 mm, ID203mm/280mm/406mm paper core all can be winding automatically.

conveyor system for automatic package transport

film wrapping device for automatic package wrapping

The strap winder of the CQA519PF was used for winding straps in parallel directly from the extruder.

The systems work independently once the material has been applied manually. They can be integrated into fully automated overall production plant. They wind pp straps

With width of 5~19mm depending on configuration.

Once a winding package has reached the desired circumference, it is wrapped with film by the intergrated winder and removed from the line by the integrated transport system. A new winding tube is fed from the magazine at the same time and the next package is wound fully automatically.

The machines were developed for continous operation. The compact design permits use even in confined spaces.

Technical details

Basic equipment

Dancer control for controlling of a constant strap tension and winding speed,

Precise, electronically controlled 2 or 3 point laying with minimal strap bend of the straps

Pneumatic mandrels for fast bobbin change

Sleeve magazine

Bobbin deposit

Automatic film dispenser

Two measurement modes: weight and meter
