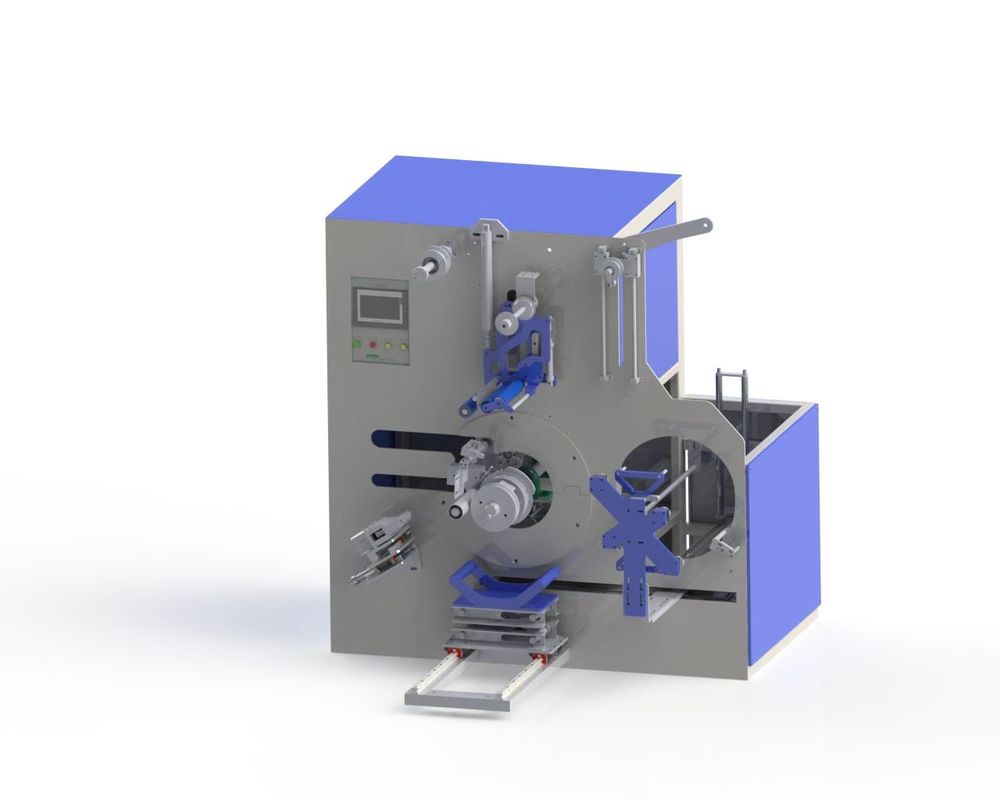

Polypropylene PP Strapping Fully Automatic Winder For 5 - 19mm PP Straps

The strap winder of the CQA519PF was used for winding straps in parallel directly from the extruder.

The systems work independently once the material has been applied manually. They can be integrated into fully automated overall production plant. They wind pp straps

With width of 5~19mm depending on configuration.

Once a winding package has reached the desired circumference, it is wrapped with film by the intergrated winder and removed from the line by the integrated transport system. A new winding tube is fed from the magazine at the same time and the next package is wound fully automatically.

The machines were developed for continous operation. The compact design permits use even in confined spaces.

Facts and advantages

fully automatic pp strap winder for straps from 5 to 19 mm, ID203mm/280mm/406mm paper core all can be winding automatically.

conveyor system for automatic package transport

film wrapping device for automatic package wrapping

Technical details

Basic equipment

Dancer control for controlling of a constant strap tension and winding speed,

Precise, electronically controlled 2 or 3 point laying with minimal strap bend of the straps

Pneumatic mandrels for fast bobbin change

Sleeve magazine

Bobbin deposit

Automatic film dispenser

Two measurement modes: weight and meter

Main configuration

1) Motor: Wuxi Xinjie main motor 1.5KW

Wuxi Xinjie Traverse motor: 400W servo motor

• PLC: Wuxi Xinjie Touch screen: Wuxi Xinjie Contactor: Schneider

3) Pneumatic components: solenoid valve and pressure gauge: Taiwan Yadeke, cylinder: Donghao Pneumatic (Wenzhou)

4)Sensors and proximity on/off lights: Korea Alto Nicks

Optional

1)Motor: Siemens main motor 1.5KW, speed ratio: 1:8, servo motor,

Siemens Traverse motor: 400W servo motor

2)PLC: Siemens Touch screen: Siemens Touch Contactor: Schneider

3) Pneumatic components: (Japan or European Brand)

4)Sensors and proximity on/off lights: Korea Alto Nicks
