Fully Automatic Polypropylene PP Strapping Winder For 8 - 19mm Straps

Fully Automatic Polypropylene PP Strap Winder For 8-19mm Straps With 500mm Package Diameter

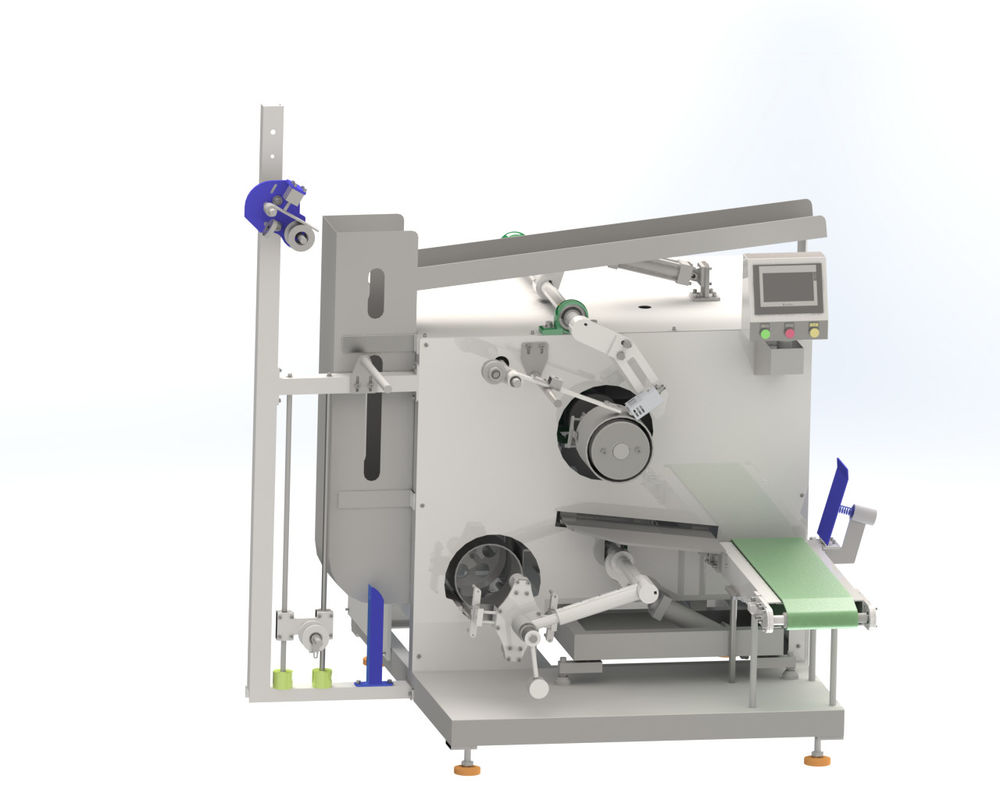

The Fully Automatic Polypropylene PP Strap Winder of the CQA819P was used for winding straps in parallel directly from the extruder.The systems work independently once the material has been applied manually. They can be integrated into fully automated overall production plant. They wind pp straps with width of 8~19mm depending on configuration.

Once a winding package has reached the desired circumference, it is removed from the line by the integrated transport system. A new winding tube is fed from the magazine at the same time and the next package is wound fully automatically.

The machines were developed for continous operation. The compact design permits use even in confined spaces.

Technical details

Facts and advantages

fully automatic pp strap winder for straps from 8 to 19 mm, with an outer package diameter of 500 mm

conveyor system for automatic transport

Basic equipment

Dancer control for controlling of a constant strap tension and winding speed

Precise, electronically controlled 2 or 3 point laying with minimal strap bend of the straps

Pneumatic mandrels for fast bobbin change

Sleeve magazine

Bobbin deposit

Two measurement modes: weight and meter

FAQ

A: Minimum inside and Max outside diameter of the roll?

B: Min inner normal 203mm or customized Max outside dia. 500mm

A: Developed and manufactured in-house?

B: Yes, We have our own R&D and manufacturing, with patents and drawings for all parts and circuits.

A: Maturity of equipment?

B: Developed and marketed for more than 6 years, hot sell.

A: Warranty period?

B: 1 Year Warranty
