Composite Cord PP Automatic Strap Winder Plastic Spraying PLC Control

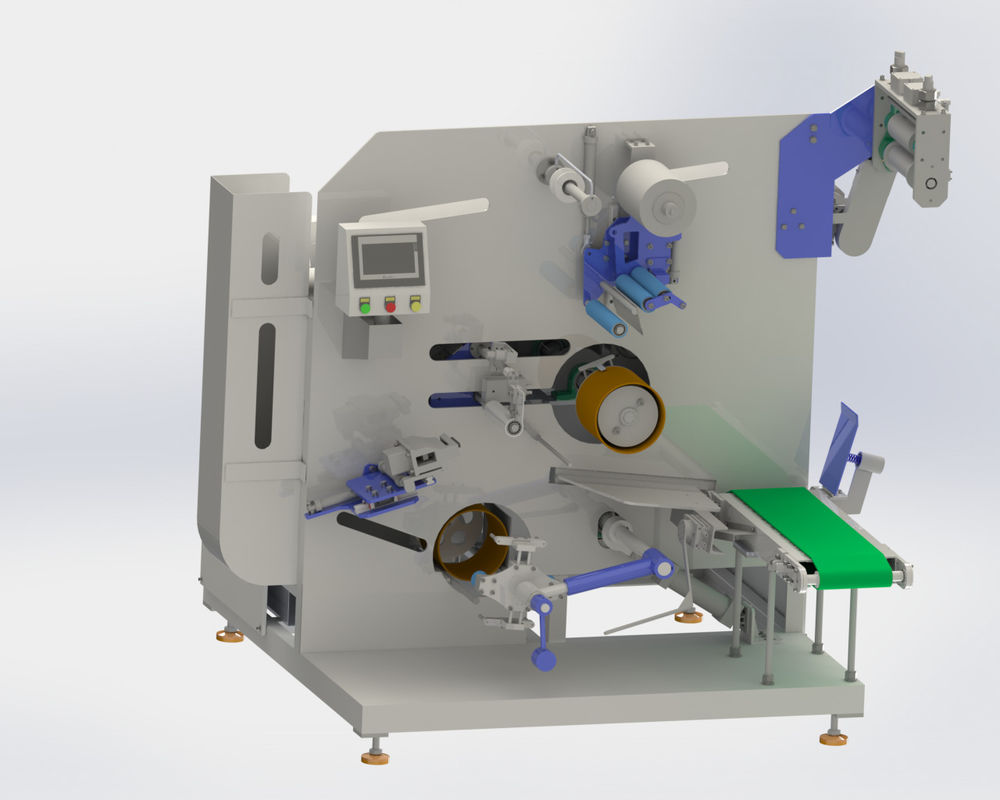

Composite cord strap automatic winder

Abstract

  The strap winder of the CQA940C was used for winding straps in parallel directly from the extruder.The systems work independently once the material has been applied manually.      They can be integrated into fully automated overall production plant. They wind cord straps

with width of 9~40mm depending on configuration.

  Once a winding package has reached the desired circumference, it is wrapped with film by the intergrated winder and removed from the line by the integrated transport system. A new winding tube is fed from the magazine at the same time and the next package is wound fully automatically.

  The machines were developed for continous operation. The compact design permits use even in confined spaces.

  The rewinding speed can be set on the touch screen, so that cord strap of different weights or widths can be rewinded at the appropriate speed. When used with the tension strap storage rack, the rewinding speed can be automatically adjusted.

Facts and advantages

1. Fully automatic cord strap winder for straps from 9 to 40 mm, with an outer package diameter of 500 mm
2. Conveyor system for automatic package transport
3. Film wrapping device for automatic package wrapping

Technical details

Basic equipment

1. Dancer control for controlling of a constant strap tension and winding speed,
2. Precise, electronically controlled 2 or 3 point laying with minimal strap bend of the straps
3. Pneumatic mandrels for fast bobbin change
4. Sleeve magazine
5. Bobbin deposit
6. Automatic film dispenser
7. Measurement modes: meter

FAQ

Q1: Minimum inside and Max outside diameter of the roll?

A1: Min inner normal 203mm or customized Max outside dia. 500mm

Q2: Developed and manufactured in-house?

A2: Yes, We have our own R&D and manufacturing, with patents and drawings for all parts and circuits.

Q3: Maturity of equipment?

A3: Developed and marketed for more than 6 years, hot sell.

Q4: Warranty period?

A4: 1 Year Warranty
