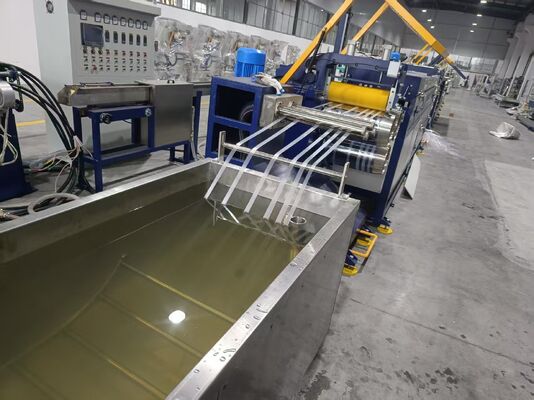

6 Strands Synchronized PP Strapping Production Line with ±0.05mm Dimensional Tolerance and 1-out-6 Flow-Diverging Die

6 Strands Synchronized PP Strapping Production Line with ±0.05mm Dimensional Tolerance and 1-out-6 Flow-Diverging Die
6 Strands Synchronized PP Strapping Production Line with ±0.05mm Dimensional Tolerance and 1-out-6 Flow-Diverging Die

Large Image :  6 Strands Synchronized PP Strapping Production Line with ±0.05mm Dimensional Tolerance and 1-out-6 Flow-Diverging Die

Product Details:
Place of Origin: CHINA
Brand Name: CHUQI
Model Number: CQ-SPP120-6
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: WOODEN BOX
Delivery Time: 60DAYS
Payment Terms: T/T
Supply Ability: 10SETS
Contact Now

6 Strands Synchronized PP Strapping Production Line with ±0.05mm Dimensional Tolerance and 1-out-6 Flow-Diverging Die

Description
Synchronized Quantity: 6 Strands Tolerance Control: ±0.05mm
Die Type: 1-out-6 Flow-Diverging Metering Method: Dual Metering Pumps
Temperature Control: ±1°C Inspection Method: Sampling + System Monitoring
Quality Goal: Batch Consistency

Synchronized Production of 6 Straps with ≤±0.05mm Dimensional Consistency
Product Overview

This production line employs a precision 1-out-6 flow-diverging die and a closed-loop control system to achieve simultaneous, synchronized extrusion of 6 PP strapping strands. The die flow channels are optimized to ensure uniform melt distribution to the 6 independent outlets, strictly controlling width and thickness consistency to within ±0.05mm.

This high-precision synchronized production capability provides customers with highly consistent product batches, meeting the stringent specification uniformity requirements of the high-end packaging industry.

Main Specifications
  • Synchronized Production Quantity: 6 strands
  • Dimensional Tolerance: ≤±0.05mm
  • Die Configuration: Standard 5-13.5mm / 6 strands; Optional 13.5-19mm / 4 strands
  • Metering Pumps: 2 units (50cc)
  • Temperature Control Accuracy: ±1°C
Technical Parameters
Item Parameter
Simultaneous Production 6 strands
Width Tolerance ≤±0.05mm
Thickness Tolerance ≤±0.05mm
Standard Width Range 5-13.5mm (6 strands)
Optional Width Range 13.5-19mm (4 strands)
Metering Pump Spec 50cc × 2 units
Temp. Control Accuracy ±1°C
Frequently Asked Questions
How do you ensure the dimensions of all 6 strands are perfectly consistent?
The key lies in three factors: 1) A high-precision 1-out-6 die with flow channels optimized via fluid simulation; 2) Two metering pumps providing stable, pulse-free melt pressure; 3) Closed-loop speed and temperature control across the line to eliminate external fluctuations. The combination ensures highly uniform dimensions across all 6 strands.
If I want to produce 6 strands of 15mm wide strapping, does the die support it?
The standard die covers widths from 5 to 13.5mm. For widths above 15mm (e.g., 15-19mm), we recommend switching to the 4-strand mode (with a corresponding die) to ensure uniform melt distribution and dimensional accuracy. We can customize dies to your required specifications.
How is dimensional consistency verified in daily production?
We recommend periodic sampling (e.g., every 2 hours) using a digital caliper to measure width and thickness of randomly selected strands from each line, and recording the data. The control system also monitors extrusion output and haul-off speed in real-time to indirectly assist consistency judgment.

Tag:

synchronous PP strapping line,

PP strapping production line,

high productivity PP strapping machine
