Compact PP Extrusion Line with 1100mm Center Height for Easy Integration

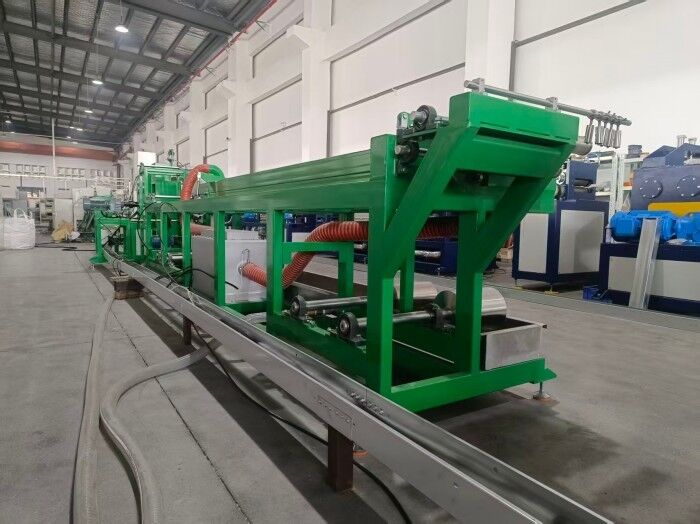

Large Image : Compact PP Extrusion Line with 1100mm Center Height for Easy Integration

Product Details:

Place of Origin:	CHINA
Brand Name:	CHUQI

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Packaging Details:	WOODEN BOX
Delivery Time:	60DAYS
Payment Terms:	T/T
Supply Ability:	100SETS

Contact Now

Compact PP Extrusion Line with 1100mm Center Height for Easy Integration

Description

Center Height:	1100mm	Layout Feature:	Compact
Installation Feature:	Modular, Easy Integration	Floor Space:	Small (≥20㎡)
Operation Direction:	Left To Right	Ergonomics:	Excellent
Highlight:	compact PP extrusion line , 1100mm center height extrusion line , PET strap winder extrusion line

Compact PP Extrusion Line with 1100mm Center Height

Designed to address modern workshop space constraints and ergonomic requirements, this production line features a compact design with a standardized 1100mm center height. This optimized configuration creates a more space-efficient footprint while ensuring seamless integration of all components including extruder, water tanks, oven, haul-off machines, and winding equipment.

Key Design Features

Uniform center height across all machine components
Standardized 1100mm center height specification
Compact equipment layout for space optimization
Simplified installation and integration process
Ergonomic operation and maintenance access

Technical Specifications

Uniform Machine Center Height	1100 mm
Recommended Floor Area	≥ 20 square meters
Design Features	Compact Layout, Modular Integration
Operation Direction	Left to Right
Ergonomic Consideration	Height optimized for operation and maintenance

Frequently Asked Questions

What exactly does the 1100mm center height refer to? Is this height fixed?

The "center height" refers to the distance from the ground to the base level where material runs continuously through the production line. This design ensures all major working units (guide rollers, haul-off rollers) are aligned at this fixed 1100mm height, maintaining a level and smooth material transmission path.

What are the specific benefits of this height design for installation and workshop layout?

This design offers two primary benefits: 1) Simplified Installation - All equipment modules are pre-built to the same height, requiring only alignment and connection during installation, eliminating individual height adjustments and reducing installation time and costs. 2) Space Optimization - The compact, standardized height allows closer placement of production line components and easier integration with upstream/downstream equipment, maximizing workshop space utilization.

Is this height suitable for operators of different heights?

The 1100mm height falls within the recognized ergonomic comfort range for industrial equipment. This allows operators of varying heights to comfortably observe operations, perform touchscreen adjustments, change winding cores, and conduct routine maintenance in a natural standing posture, reducing fatigue from prolonged bending or reaching.
