Wind 2 Straps at Once & Double Output Automated PP Strap Winder

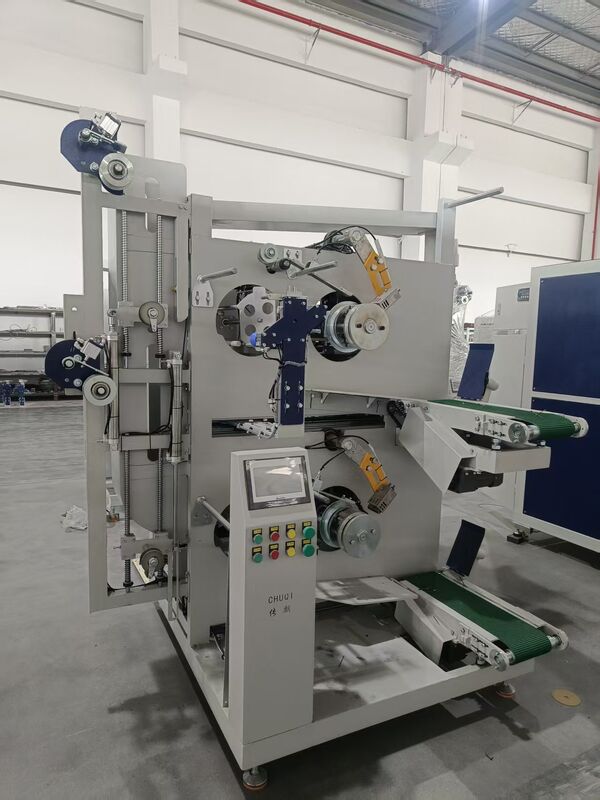

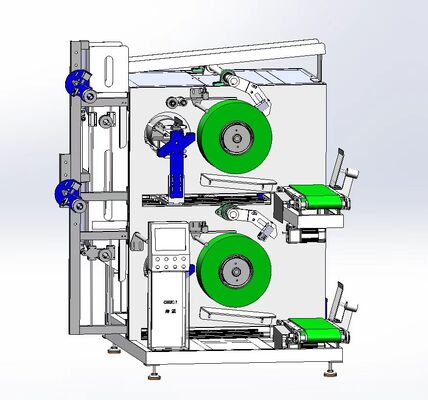

The CQA819P Automated PP Strap Winder is engineered to wind two PP straps simultaneously directly from the extruder, effectively doubling output without increasing floor space. Unlike conventional single-spindle winders, this twin-capability design reduces production line length and accelerates throughput. Each winding position operates independently after manual threading, yet seamlessly integrates into fully automated plants.

With a winding speed of 50-300 m/min, a maximum package diameter of 500 mm, and dancer-controlled constant tension, the CQA819P ensures high-density, consistently wound coils for straps from 8 to 19 mm wide. Built for 24/7 continuous operation, it features an integrated transport system that automatically removes finished packages and feeds new winding tubes from a magazine - all while you wind two straps at once.

• Wind two straps at the same time - Two independent winding stations work in parallel, doubling output without doubling operator effort
• 50-300 m/min winding speed - High-speed production with 350 m/min pick-up capability for rapid cycle times
• Fully automatic after manual thread-up - Automatic package removal, new tube feeding from magazine, and non-stop winding
• Constant tension dancer control - Ensures uniform package density and prevents strap deformation
• Adjustable traverse (50-200 mm) - Flexible package widths for different customer requirements
• Two measurement modes (weight / length) - Precise batch control for inventory and shipping
